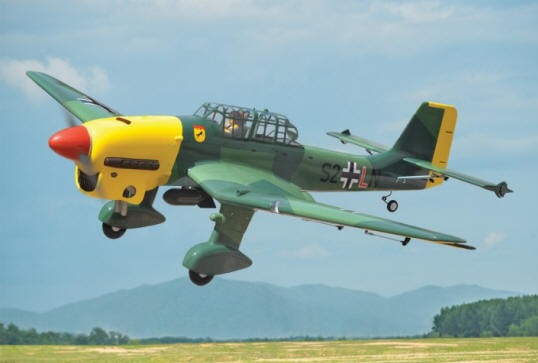

JUNKERS JU87- B2 STUKA 60cc Gas
Item code: BH169
SPECIFICATION:
–  Wingspan: 2,300mm (90.55in).
–  Length: 1,837mm (72.32in.)
–  Weight: 8.6 – 8.8kg (18.92 – 19.36 lbs).
–  Wing area: 90.2 dm2.
–  Wing loading: 95.34 g/dm2.
–  Servo mount: (42x 21)mm; (33 x 17)mm.
–  Wing type: Naca Airfoil.
–  Gear type: Oleo struts for main gear and spring wire for tail gear (included).
–  Spinner: 115 mm.
Parts listing required (not included):
–  Radio: 06 channels.
–  Servo: Standard high torque servos.
              08 servos, size: (39.9 x 20.1 x 38.1)mm,
              + 02 servos, size: (32.3 x 16.8 x 31)mm elevator.
–  Engine: 50 – 60cc Gas.
–  Motor: Brushless outrunner 5000 –  6500W, 230KV.
–  Propeller: Suit with your engine.
Recommended receiver battery (not included):
–  Motor:  RIMFIRE. 50 cc.
–  Lipo cell: 12 cells 5500 – 6000mAh.
–  Receiver battery: 6.0V 2400-2600mAh NiMH (2 Packs).
–  ESC: 120A.
OLEO STRUTS LANDING GEAR.
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
