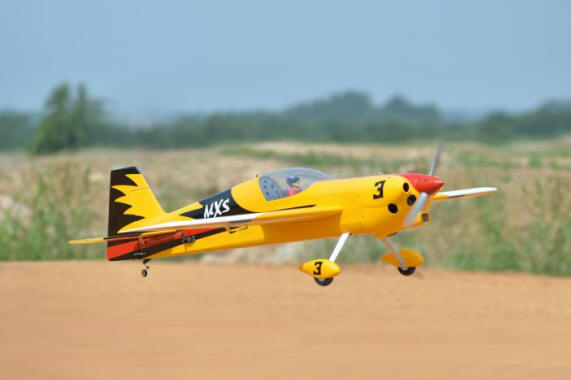

MXS 15ccGas / 75-95 2Stroke
Item code: BH167.
Glow and EP
SPECIFICATION:
–  Wingspan: 1,620 mm (63.78 in).
–  Length: 1,520 mm (59.84 in).
–  Weight: 3.8 – 4 kg (8.36 – 8.8 lbs).
–  Wing area: 43.15 dm2.
–  Wing loading: 88.06 g/dm2.
–  Wing type: Naca Airfoil.
–  Servo mount: 42mm x 21mm.
–  Gear type: Aluminium Hi-grade for main gear and spring wire for tail gear (included).
–  Spinner: 70mm.
Parts listing required (not included):
–  Radio: 05 channels.
–  Servo: 06 standard high torque servos.
–  Engine: 75 – 95  2 stroke ; 15 cc gas.
–  Motor: Brushless outrunner 1200-2200W, 650KV.
–  Propeller: Suit with your engine.
 Recommended Motor and Battery set up (not included):
–  Motor:  RIMFIRE.60.
–  Lipo cell: 6 cells 4,000-5,000mAh.
–  Receiver battery: : 4.8 – 6V/ 800 – 1200mAh NiMH.
–  ESC: 80A.
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
